How to ensure that the performance of the solvent-free single-station laminating machine meets the design requirements through no-load and load debugging after the equipment is assembled

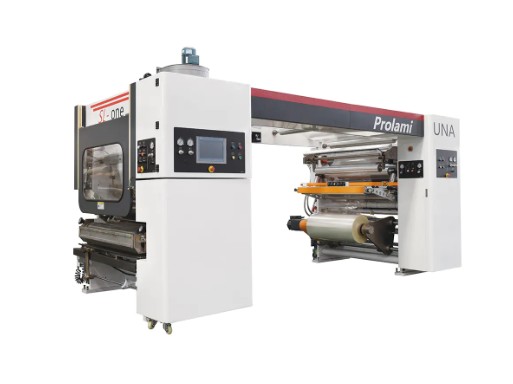

In the field of industrial production equipment, SL Solvent-free single-station laminated machine has become a key equipment for many industries to achieve high-quality laminating processes with its environmentally friendly and efficient characteristics. When the solvent-free single-station laminating machine completes the precise assembly process, it does not mean that it can be directly put into production. The strict debugging process is an important link to ensure that its performance meets the standards. The two stages of no-load debugging and load debugging are the core steps in the debugging process, which play a decisive role in the stable operation of the equipment and production quality. ​
No-load debugging is the initial stage of equipment debugging. Under no-load conditions, the equipment begins to perform operation tests. The first thing to check is the movement status of each component. The internal structure of the laminating machine is complex, including many moving parts such as unwinding rollers, coating rollers, composite rollers, and winding rollers. These parts need to maintain a smooth operation state when the equipment is running. The debugging personnel will carefully observe the rotation of each roller to check whether there is a jam or abnormal noise. The poor rotation of the roller may cause the substrate to be transported unsteadily, which in turn affects the subsequent coating and laminating processes. Once an abnormality is found, the commissioning personnel will immediately stop the machine for inspection to check whether there are problems such as component installation misalignment, bearing damage, insufficient lubrication, etc., and make adjustments and repairs in time. ​
The operation of the transmission system is also the focus of no-load commissioning. The transmission system is responsible for accurately transmitting power to each moving part to ensure the orderly operation of the equipment. During the commissioning process, the commissioning personnel will check whether the gear meshing is accurate and whether the chain tension is appropriate. Poor gear meshing will lead to reduced transmission efficiency and even cause equipment vibration and noise, affecting the service life of the equipment; chain tension that is too loose or too tight will make the transmission unstable and interfere with the normal operation of the equipment. The commissioning personnel will fine-tune the gear gap and adjust the chain tension appropriately according to the actual situation to ensure that the transmission system can work stably and efficiently. ​
The electrical control system plays the role of "brain" in the operation of the solvent-free single-station laminating machine, controlling the various functions and parameters of the equipment. During no-load commissioning, the commissioning personnel will test each function of the electrical control system one by one. From the start and stop buttons of the equipment, to the signal transmission of each sensor, to the setting and display of various parameters on the control panel, a comprehensive and detailed inspection is required. For example, check whether the sensor can accurately sense the position and tension changes of the substrate and promptly feed back the signal to the control system; verify whether the parameters set on the control panel can be accurately transmitted to the various actuators of the equipment to ensure that the equipment operates according to the preset program. If a fault is found in the electrical control system, the commissioning personnel will use professional testing instruments to check the circuits and components, find the fault point and repair it. ​
During the no-load commissioning process, the adjustment of equipment parameters is the key to achieving the best operating state. The speed of the roller is one of the important parameters that affect the lamination efficiency and quality. Different substrates and lamination processes have different requirements for the roller speed. The commissioning personnel will gradually adjust and test the roller speed according to the design parameters and actual operation of the equipment. By observing the conveying speed and stability of the substrate on the roller, it is judged whether the speed is appropriate. If the speed is too fast, it may cause the substrate to stretch and deform; if the speed is too slow, it will affect production efficiency. At the same time, the setting value of the tension control system also needs to be accurately adjusted. Appropriate tension can ensure that the substrate remains flat during transportation and avoid wrinkles, deviation and other problems. The commissioning personnel will repeatedly debug the tension control system according to the material, thickness and laminating process requirements of the substrate to find the best tension setting value to ensure that the substrate is always in a stable state during the laminating process. ​
When the no-load commissioning ensures that the movement of all parts of the equipment is normal, the transmission system is stable, the electrical control system functions well and the parameters are adjusted to the appropriate range, the solvent-free single-station laminating machine enters the load commissioning stage. Load commissioning simulates actual production conditions, and puts substrates and adhesives of different materials and thicknesses into the equipment for laminating tests, which is a comprehensive test of the equipment performance. ​
In load commissioning, the first thing to pay attention to is the laminating quality. Laminating strength is one of the key indicators to measure laminating quality. The commissioning personnel will select different batches and types of substrates and adhesives, and perform laminating operations according to the actual production process. After the laminating is completed, the strength of the laminating part is tested by professional testing equipment. If the bonding strength is insufficient, it may be caused by insufficient adhesive coating, uneven coating, or unreasonable settings of bonding pressure, temperature and other parameters. The commissioning personnel will investigate and adjust these possible reasons one by one. For example, increase the amount of adhesive coating, optimize the speed and pressure of the coating roller, adjust the temperature and pressure of the bonding roller and other parameters, and perform the bonding test again until the bonding strength meets the design requirements. ​
The appearance quality after bonding should not be ignored. During the load debugging process, the commissioning personnel will carefully check whether there are defects such as bubbles, wrinkles, and glue marks on the surface of the bonded product. The generation of bubbles may be due to the mixing of air in the adhesive or uneven pressure during the bonding process; wrinkles may be related to improper tension control of the substrate and uneven roller surface; the appearance of glue marks may be due to insufficient precision of the coating roller or poor fluidity of the adhesive. For these appearance defects, the commissioning personnel will take corresponding measures to improve them. For example, degassing the adhesive, optimizing the tension control system, polishing the roller surface, adjusting the adhesive formula to improve its fluidity, etc., through continuous adjustment and testing, ensure that the appearance quality of the product after bonding meets the standard. ​
During the load debugging process, the operating stability and reliability of the equipment are also important inspection contents. During the long-term simulated production operation, the debugging personnel will pay close attention to the operating status of each component of the equipment and monitor the temperature, vibration, noise and other parameters of the equipment. Long-term operation of the equipment may cause the components to heat up. If the temperature is too high, it will affect the performance and service life of the equipment. The debugging personnel will check whether the cooling system is working properly and whether the heat dissipation effect is good, and make corresponding adjustments. Excessive vibration and noise of the equipment may indicate potential failures of the equipment. The debugging personnel will use professional vibration detection instruments and noise detection equipment to analyze the source of vibration and noise, tighten loose parts, and replace worn parts to ensure that the equipment can maintain a stable and reliable state during load operation. ​
Load debugging also requires an evaluation of the production efficiency of the equipment. In the process of simulating actual production, record the bonding output of the equipment per unit time and compare it with the design capacity of the equipment. If the production efficiency does not meet expectations, the commissioning personnel will analyze the reasons, which may be that the equipment's operating parameters are not set reasonably, or there is room for optimization in the process flow. The commissioning personnel will optimize and adjust the equipment's operating speed, the connection time between each process, etc., and sort out and improve the process flow. Through continuous testing and optimization, the production efficiency of the equipment can be improved to meet the design requirements.
